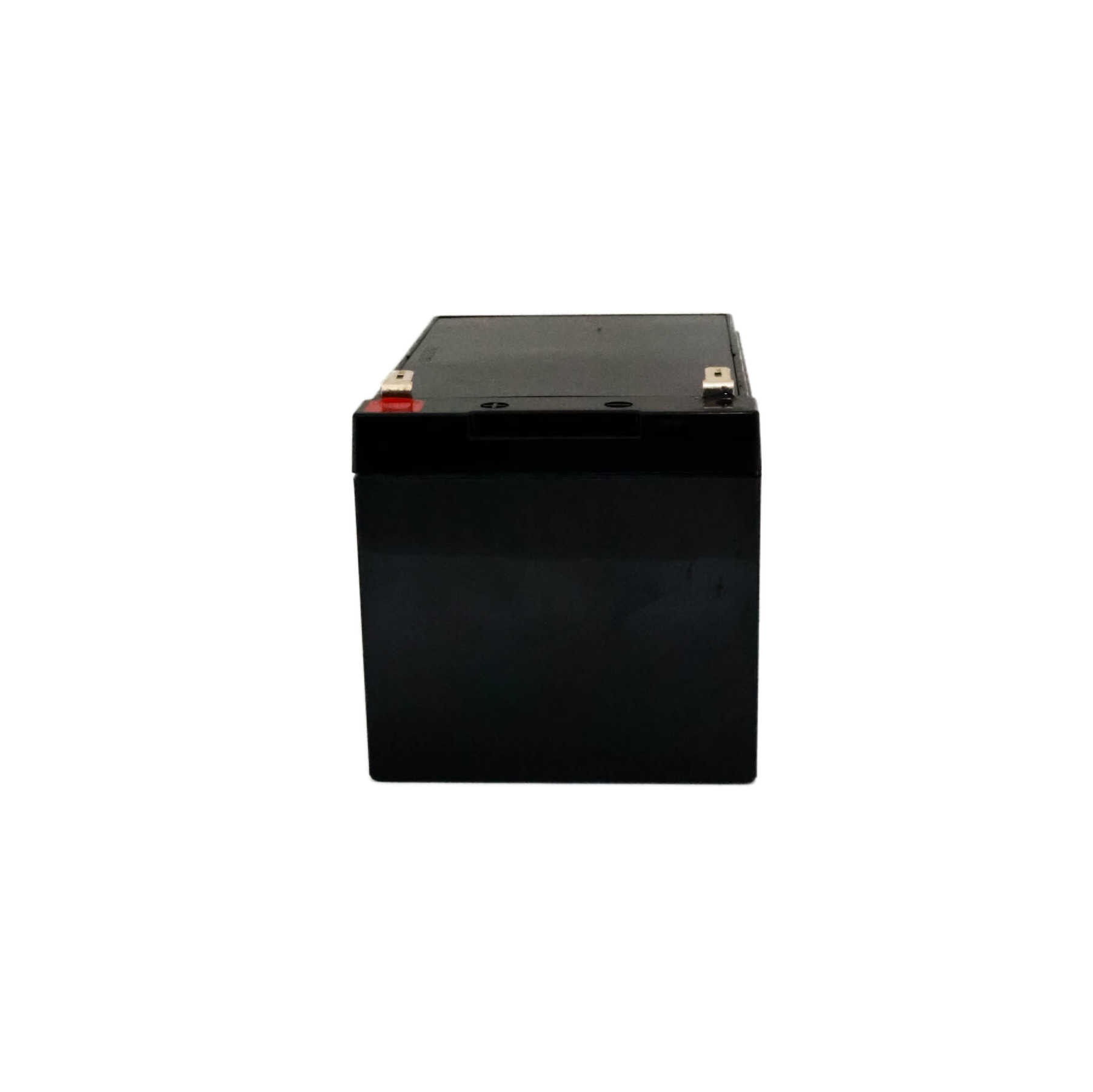

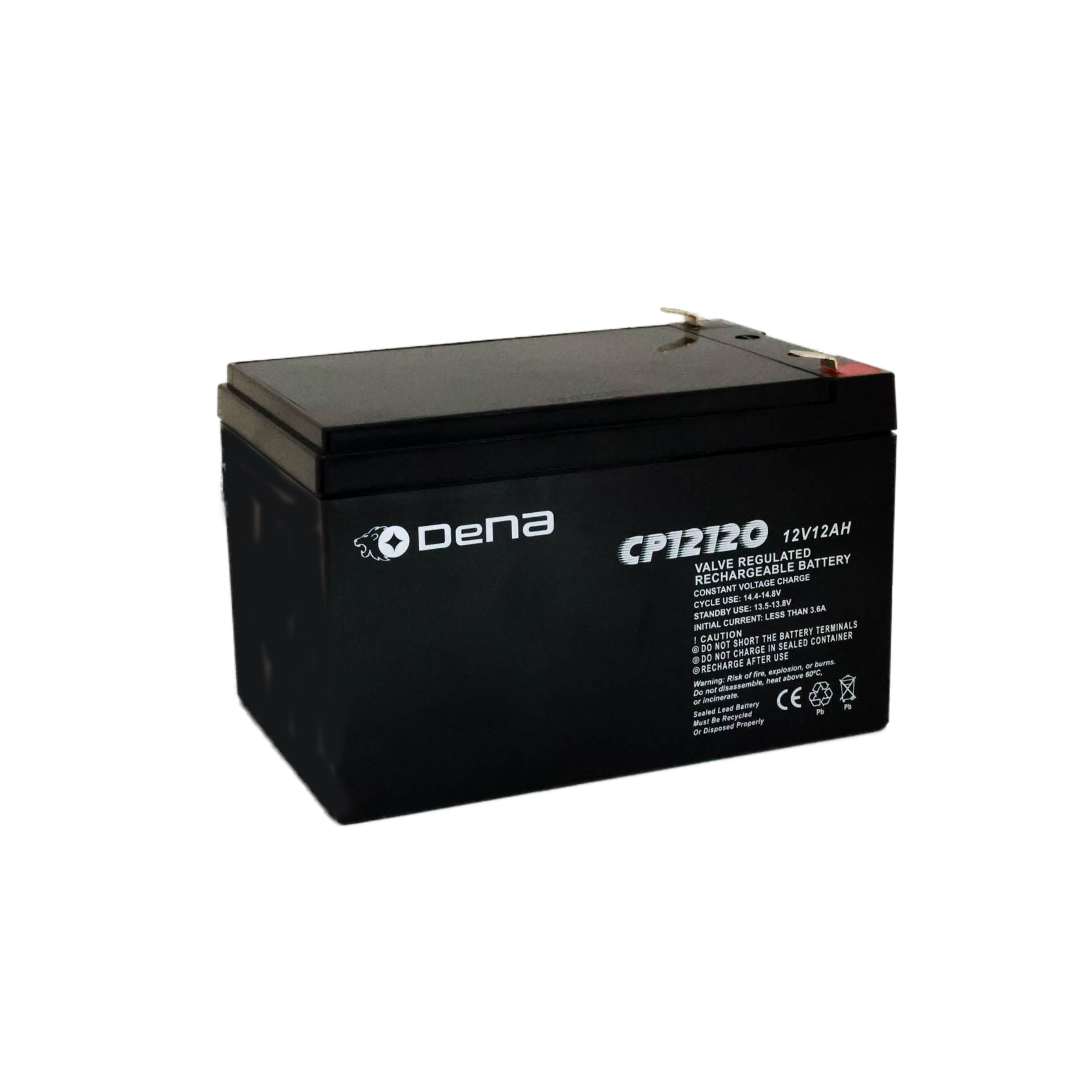

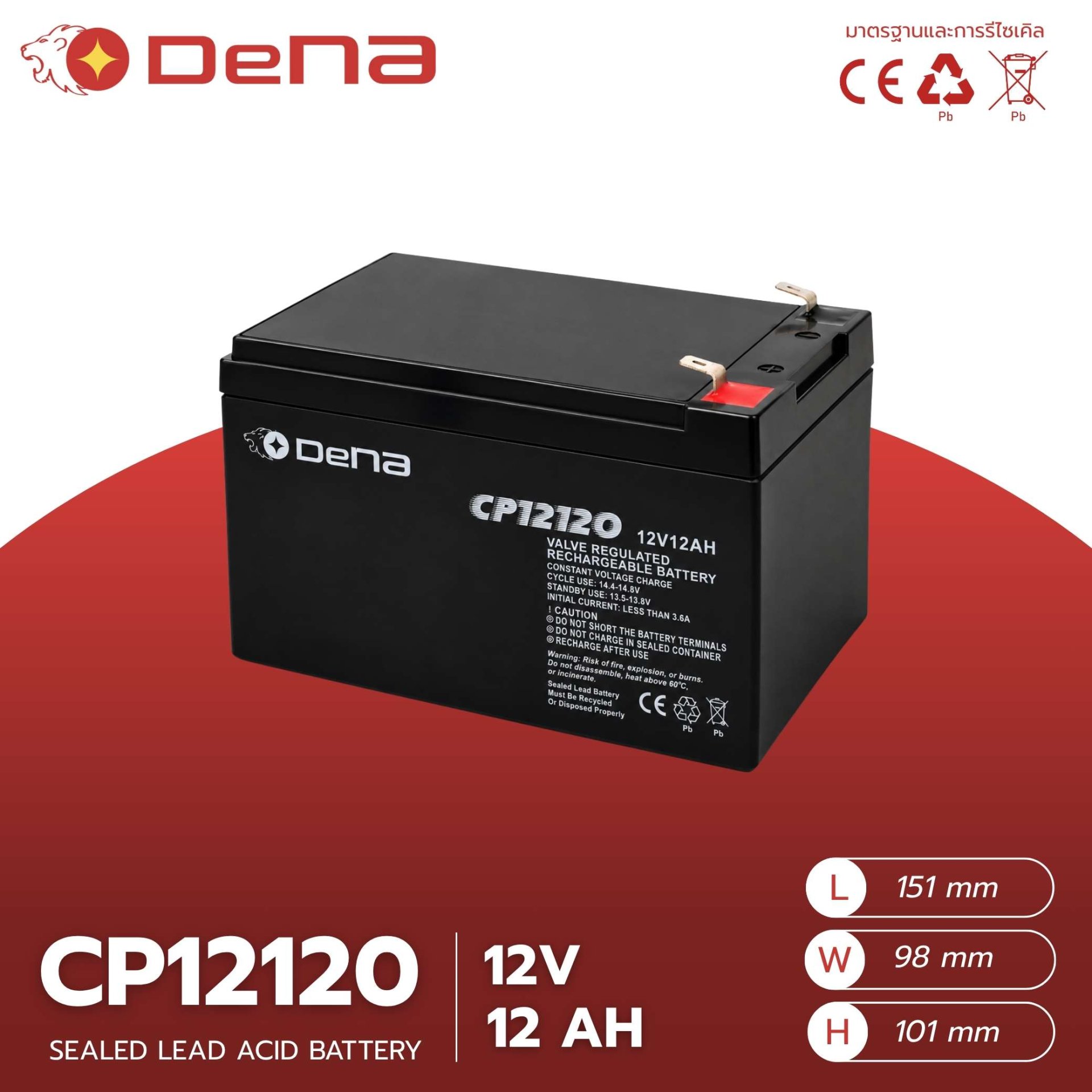

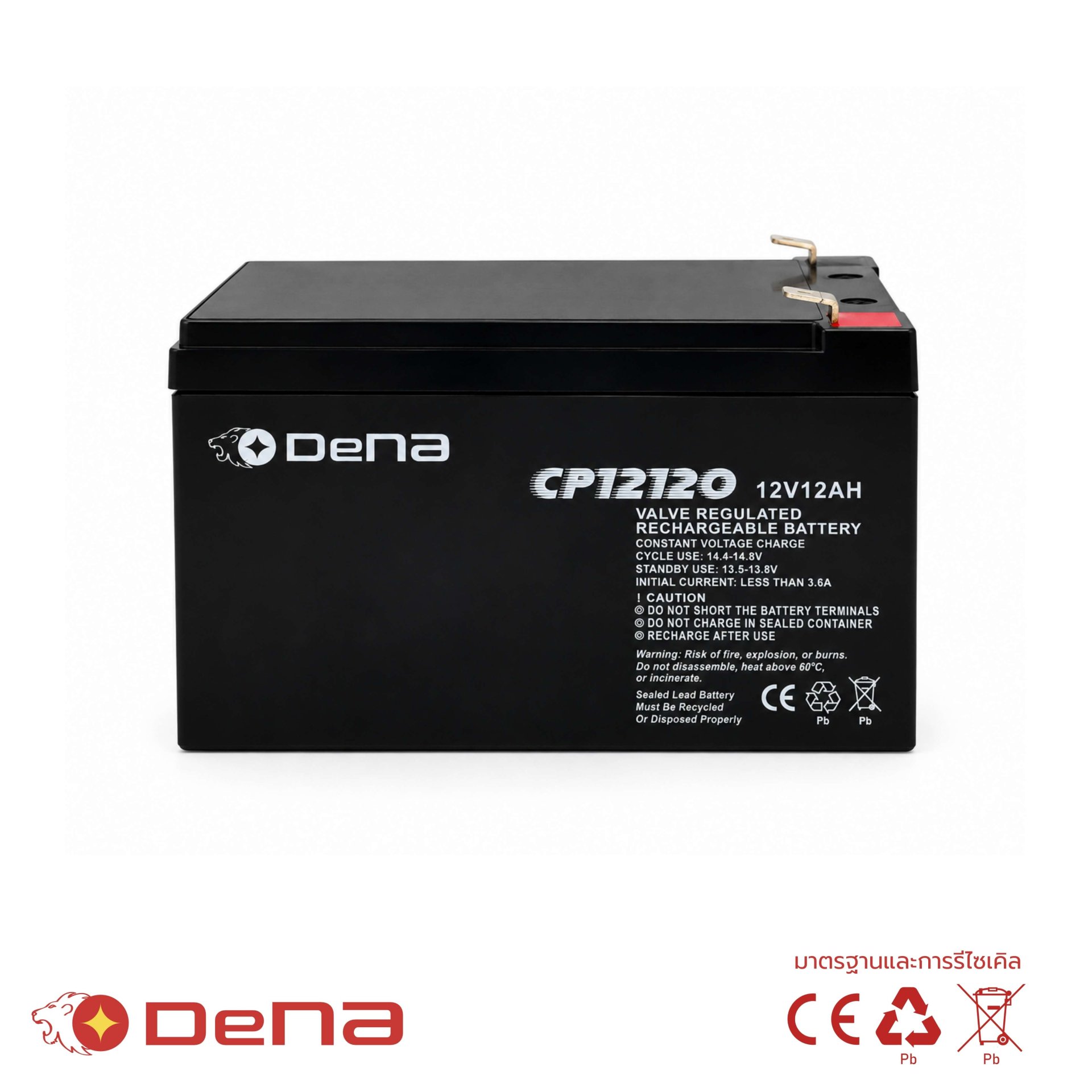

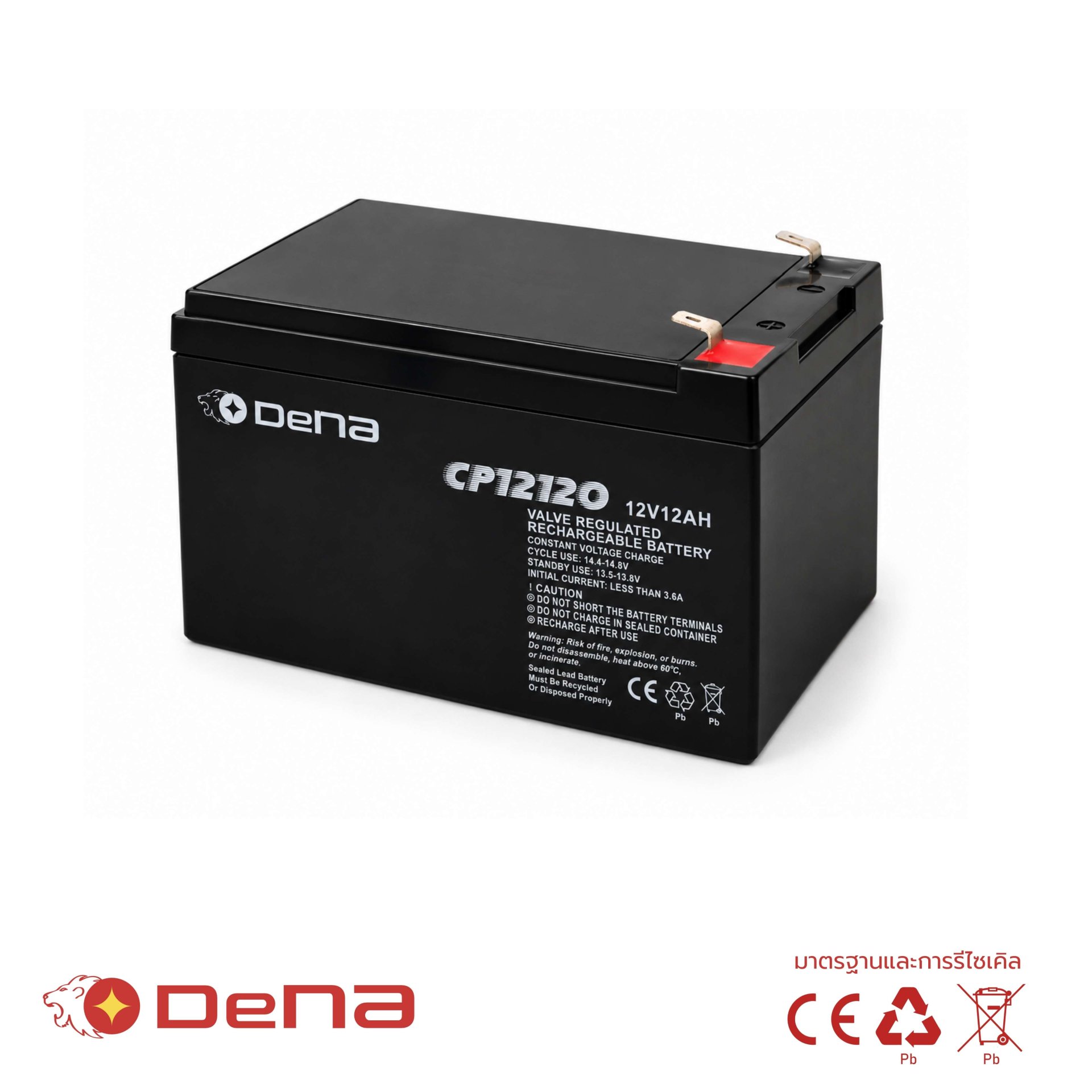

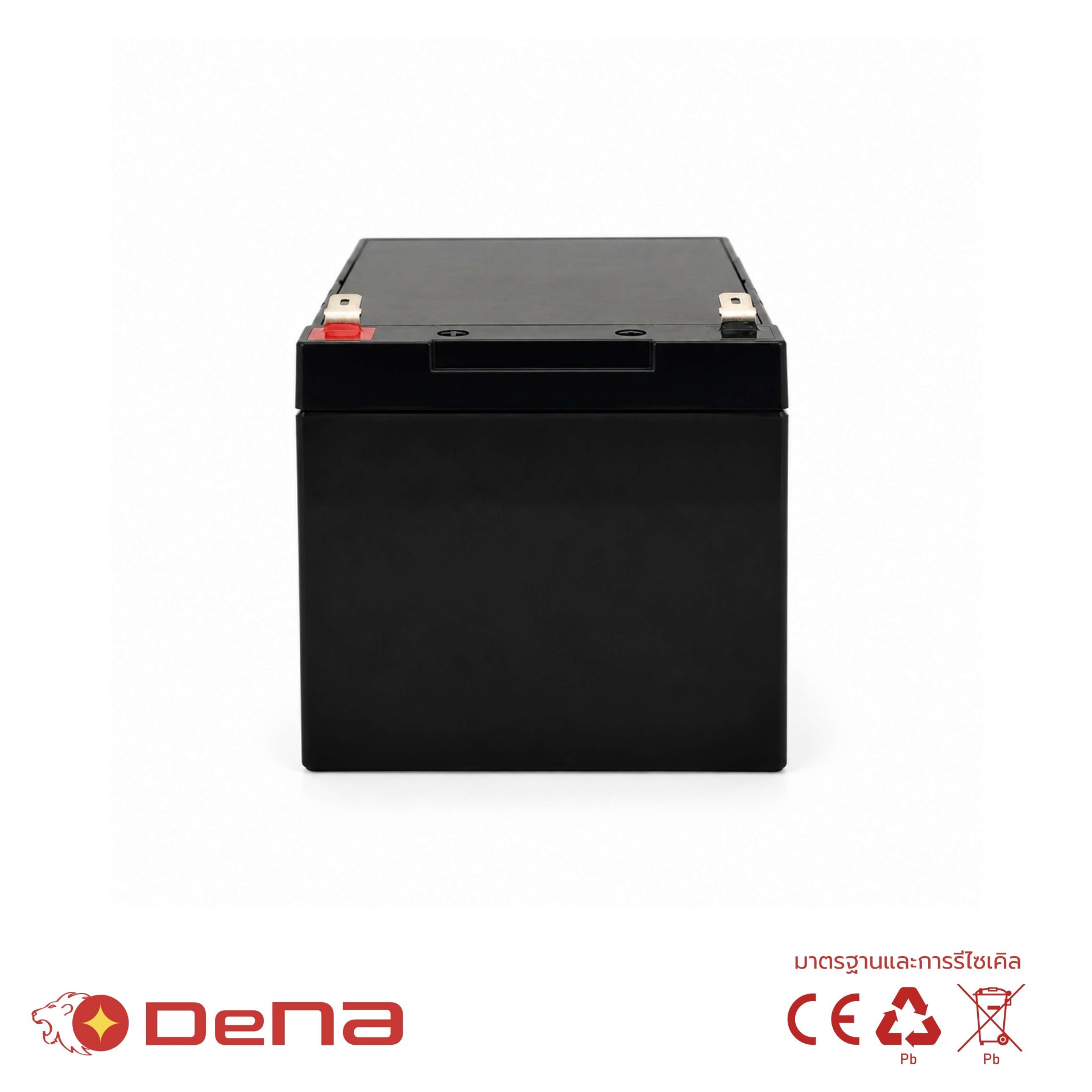

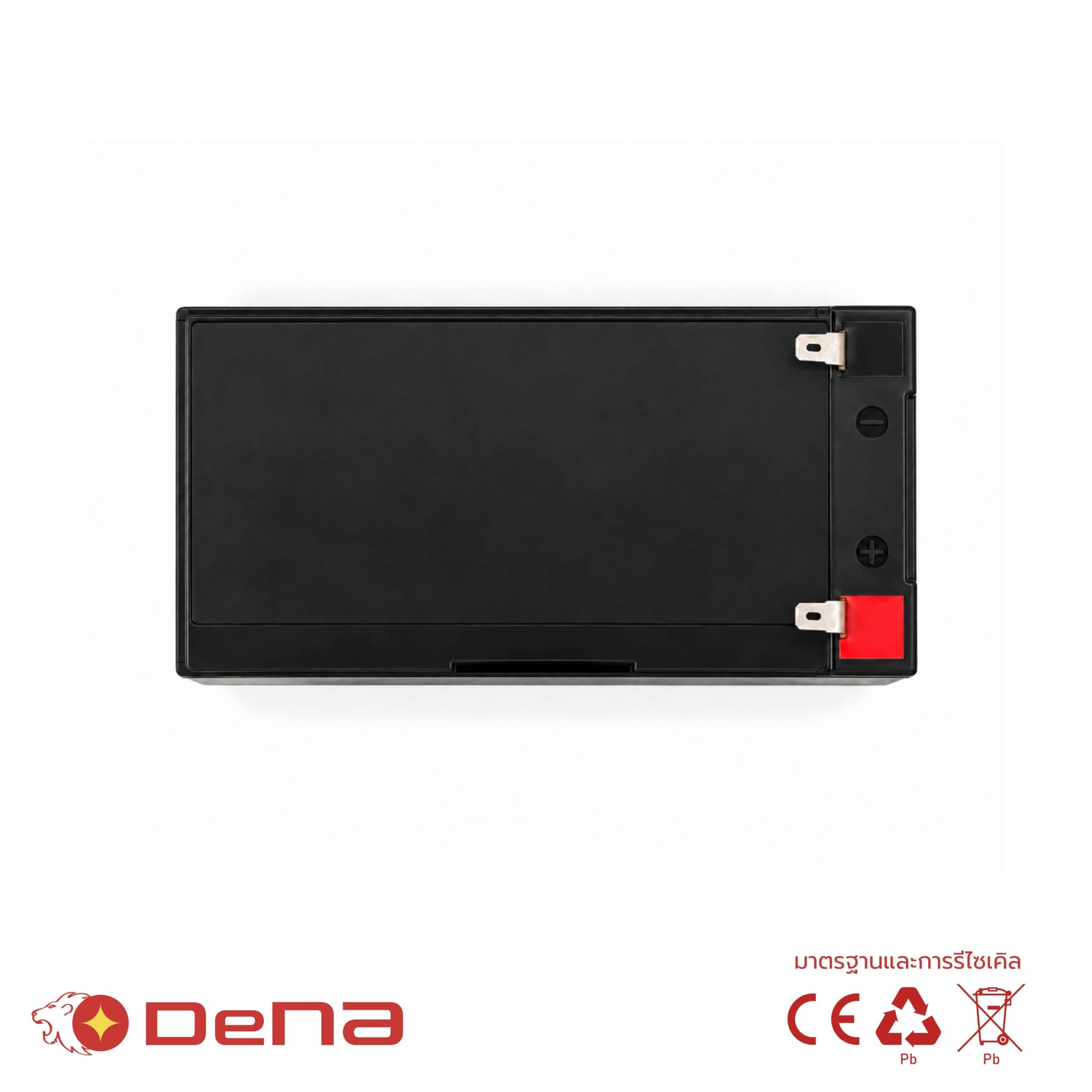

DeNA CP12120

Attribute:

Voltage (V) : 12 Capacity 20hr (Ah): 12 Dimensions : 151 x 98 x 95 mm (L x W x H)

Share

ดาวน์โหลด Spec

Specification

Nominal Voltage12V
Number of cell6
Design Life5 years
Nominal Capacity 77°F(25°C)
    20 hour rate (0.6A, 10.5V)
    10 hour rate (1.14A, 10.5V)
    5 hour rate (2.05A, 10.5V)
    1 hour rate (8.14A, 9.6V)

12Ah
11.4Ah
10.25Ah
8.14Ah
Internal Resistance
    Fully Charged battery
    77°F (25°C)

≤19mOhms

Self-Discharge
    3% of capacity declined per month at 25°C (average)
Operating Temperature Range
    Discharge
    Charge
    Storage

-20~60°C
-10~60°C
-20~60°C
Max. Discharge Current
77°F (25°C)
180A(5s)

Short Circuit Current600A
Charge Methods:
Constant Voltage Charge 77°F (25°C)
    Cycle use
         Maximum charging current
         Temperature compensation
    Standby use
         Temperature compensation



14.4-14.8V
4.8A
-30mV/°C
13.5-13.8V
-20mV/°C
Dimensions and Weight
    Length(mm / inch)
    Width(mm / inch)
    Height(mm / inch)
    Total Height(mm / inch)
    Approx. Weight(Kg / Ibs)

151 / 5.94
65 / 2.56
94 / 3.70
100 / 3.94
2.7 / 4.4
