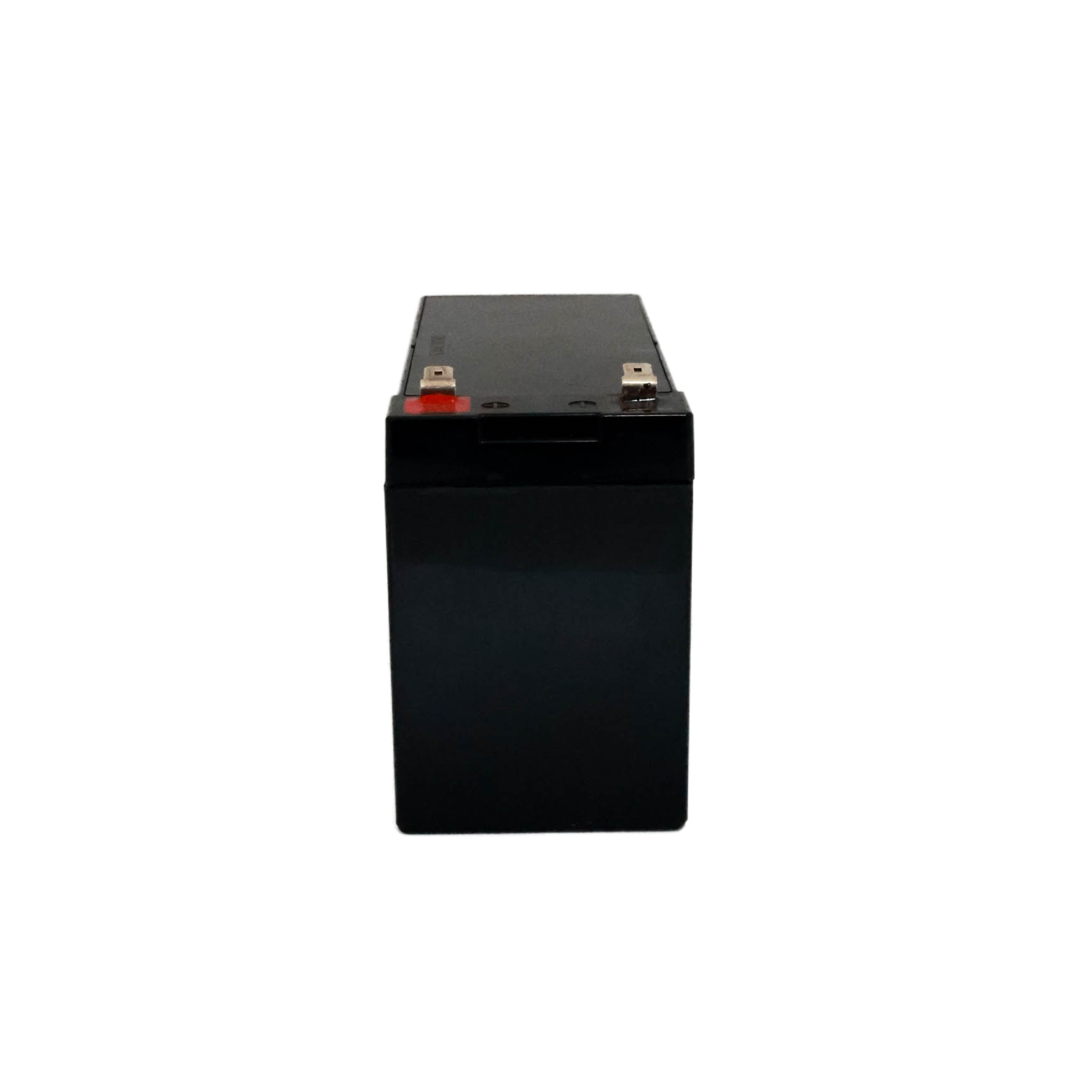

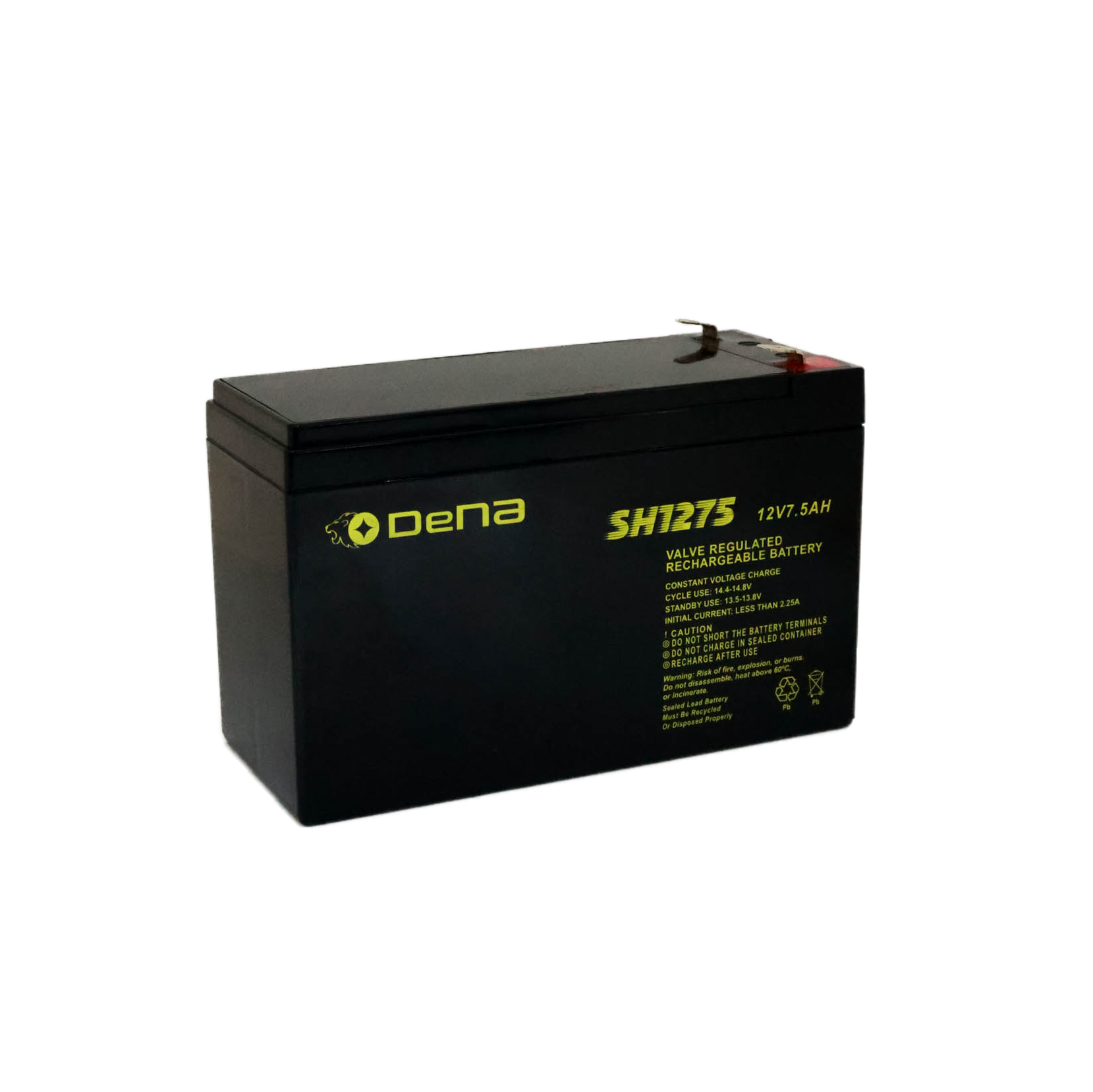

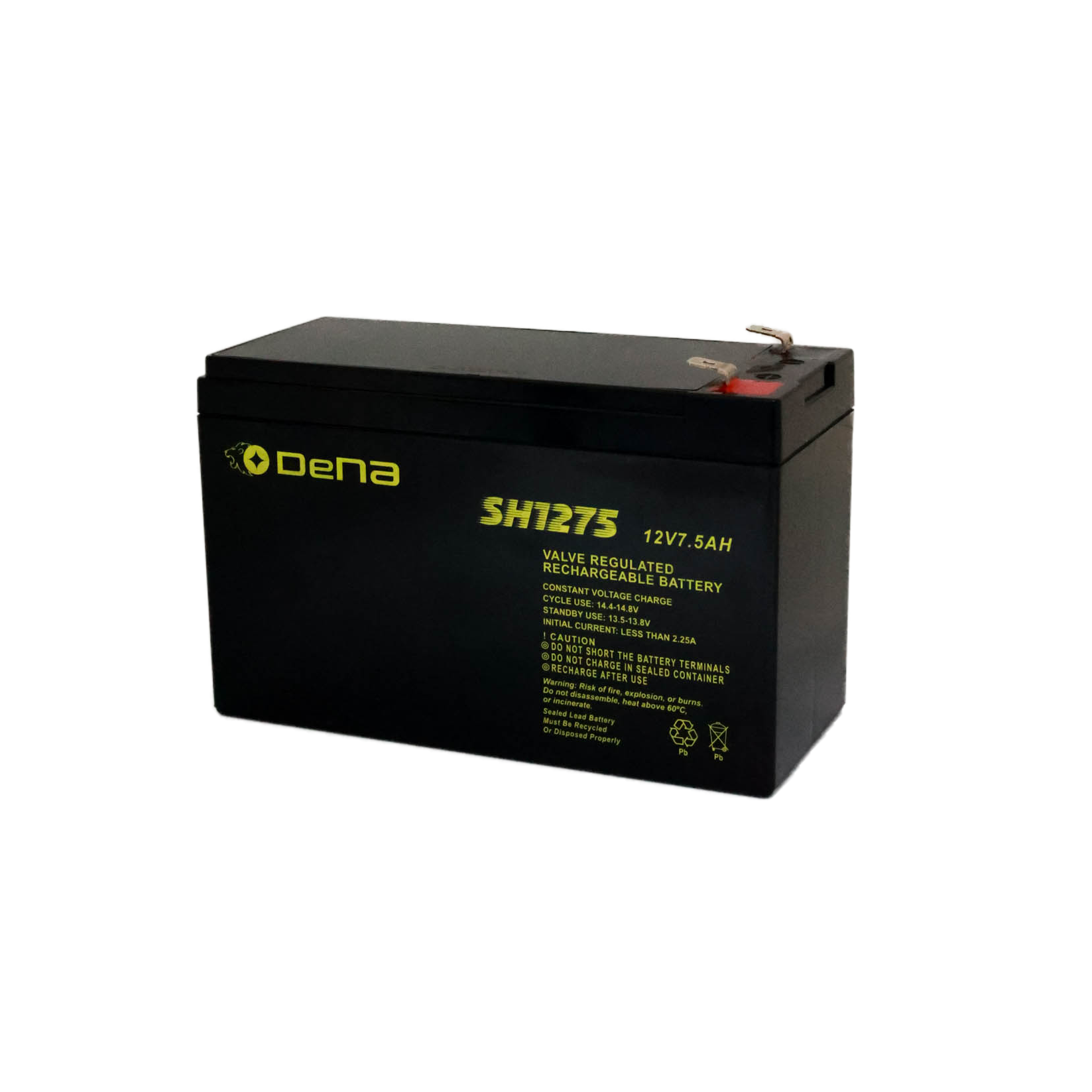

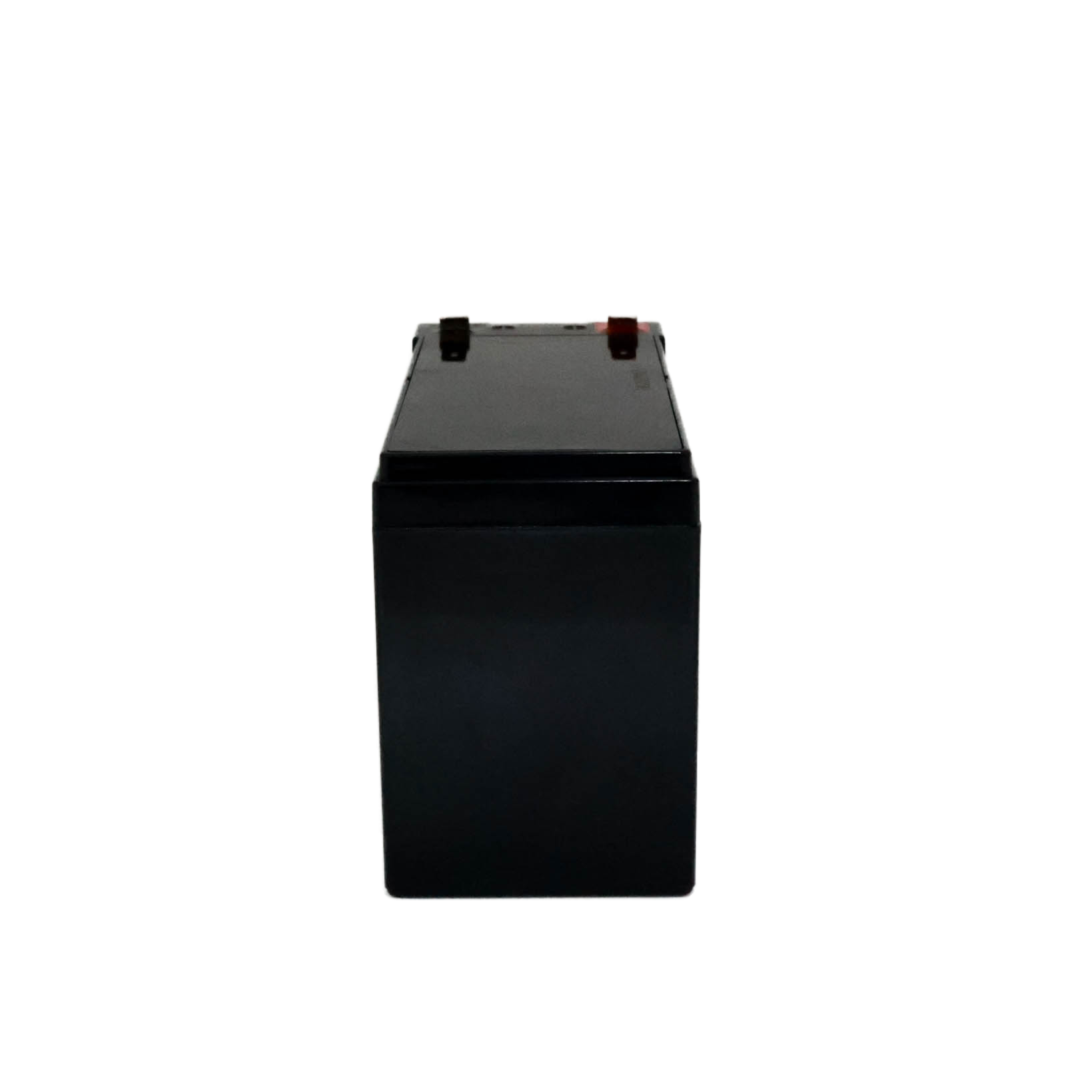

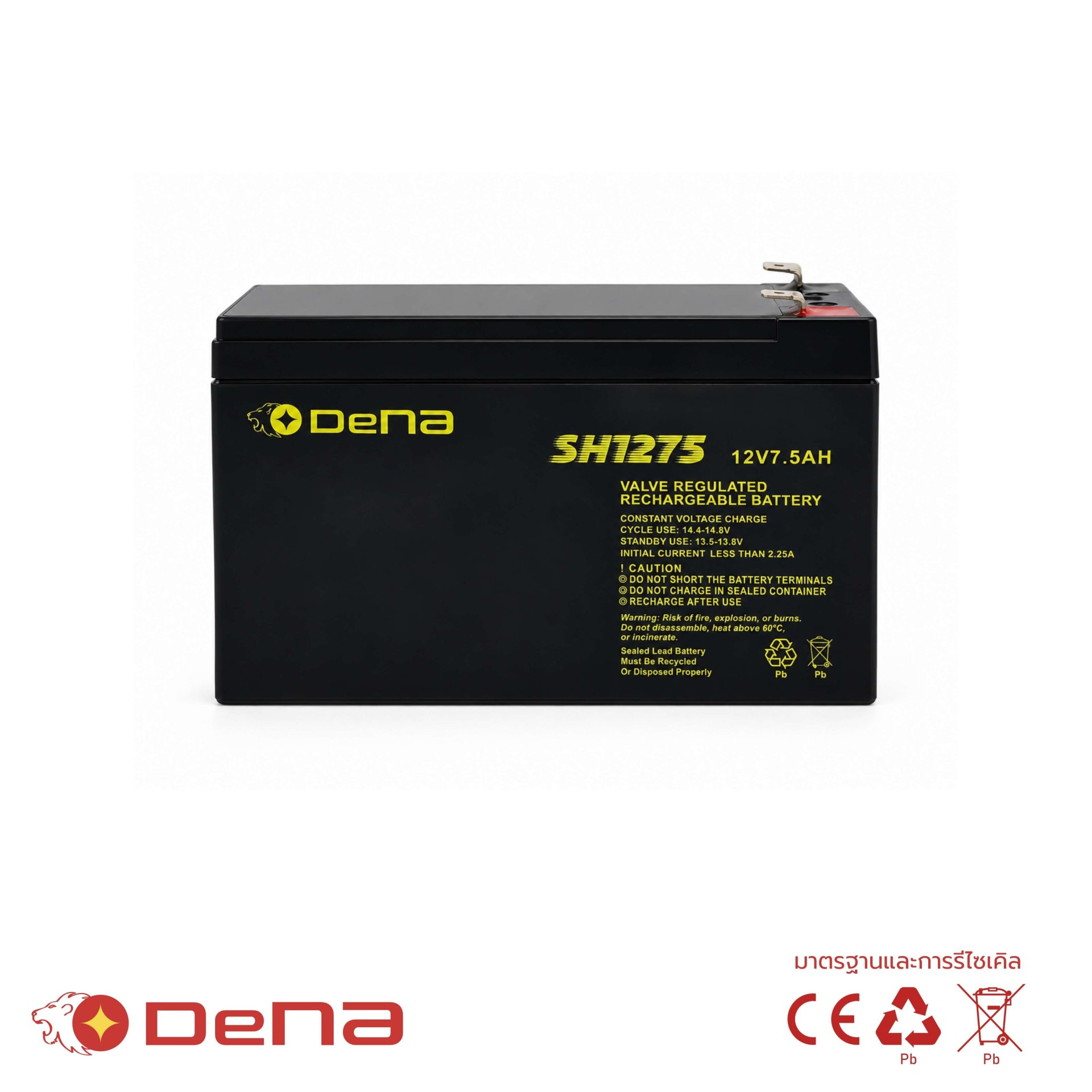

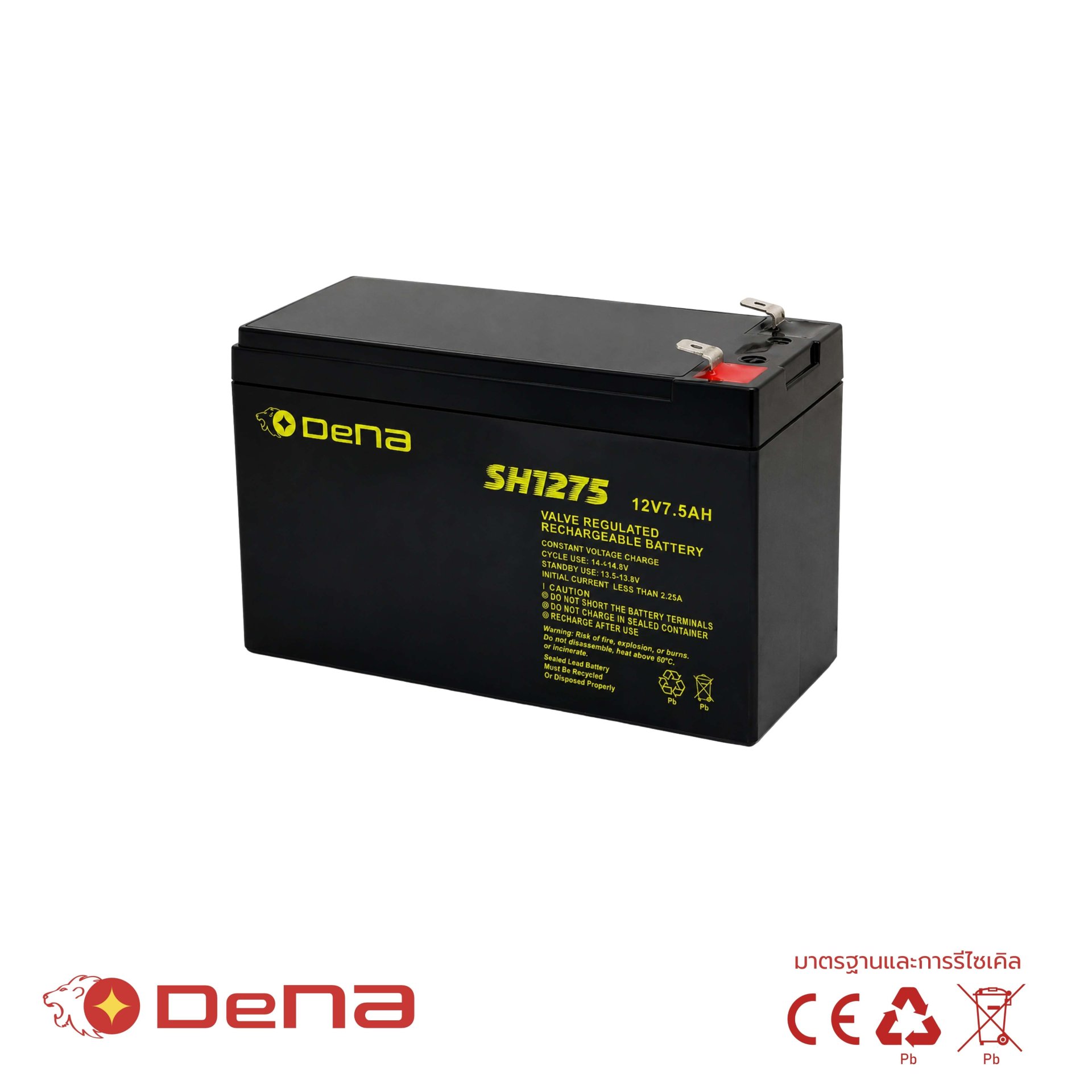

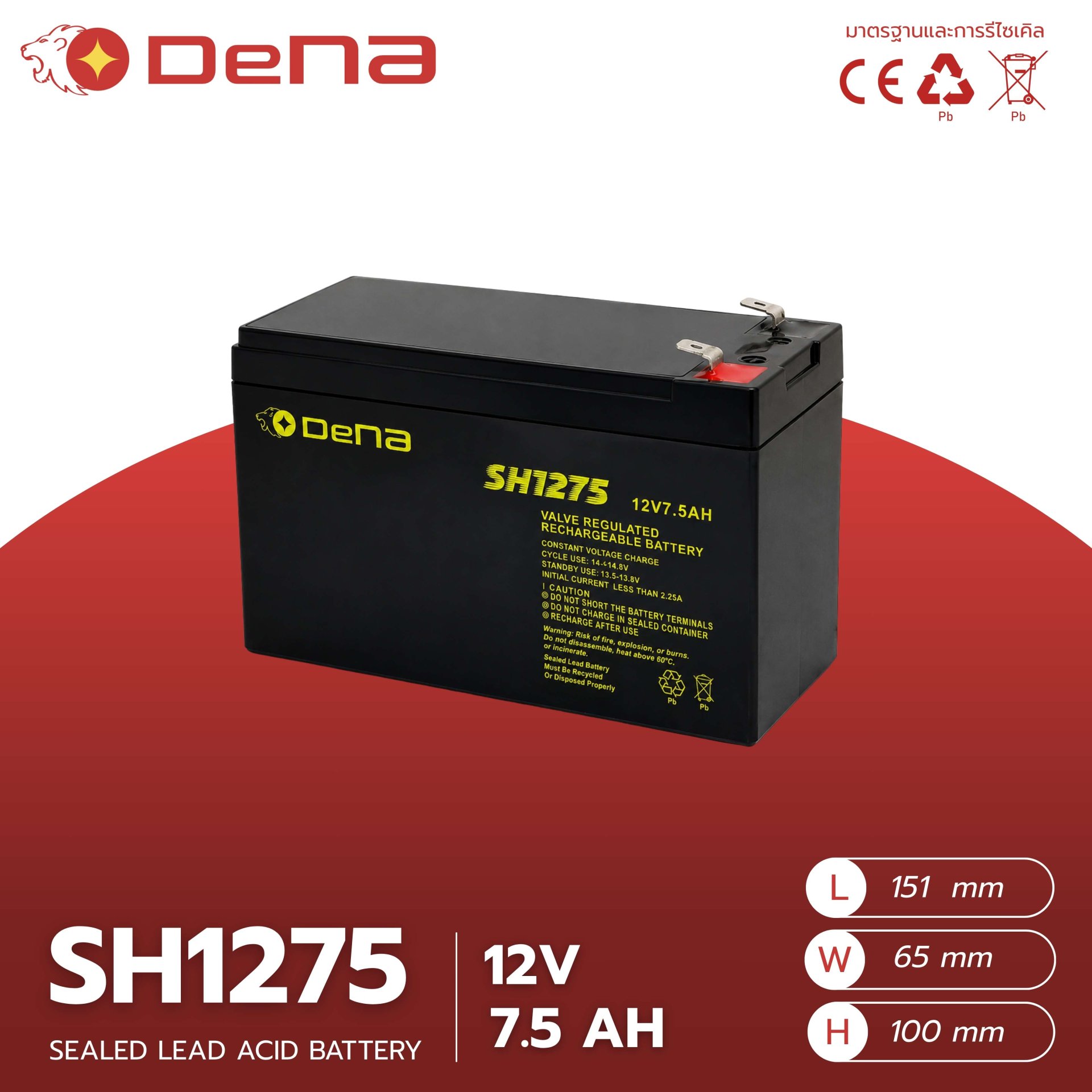

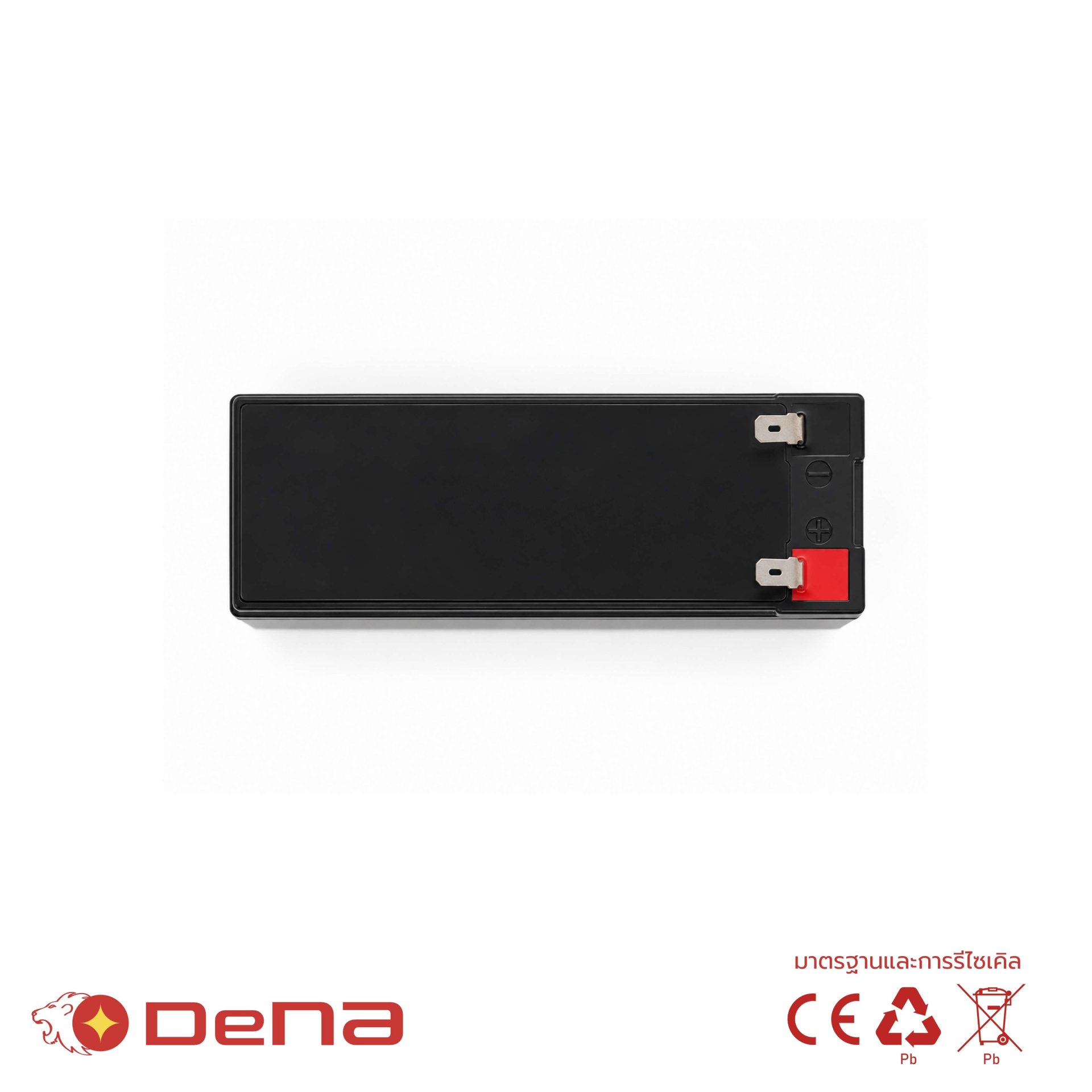

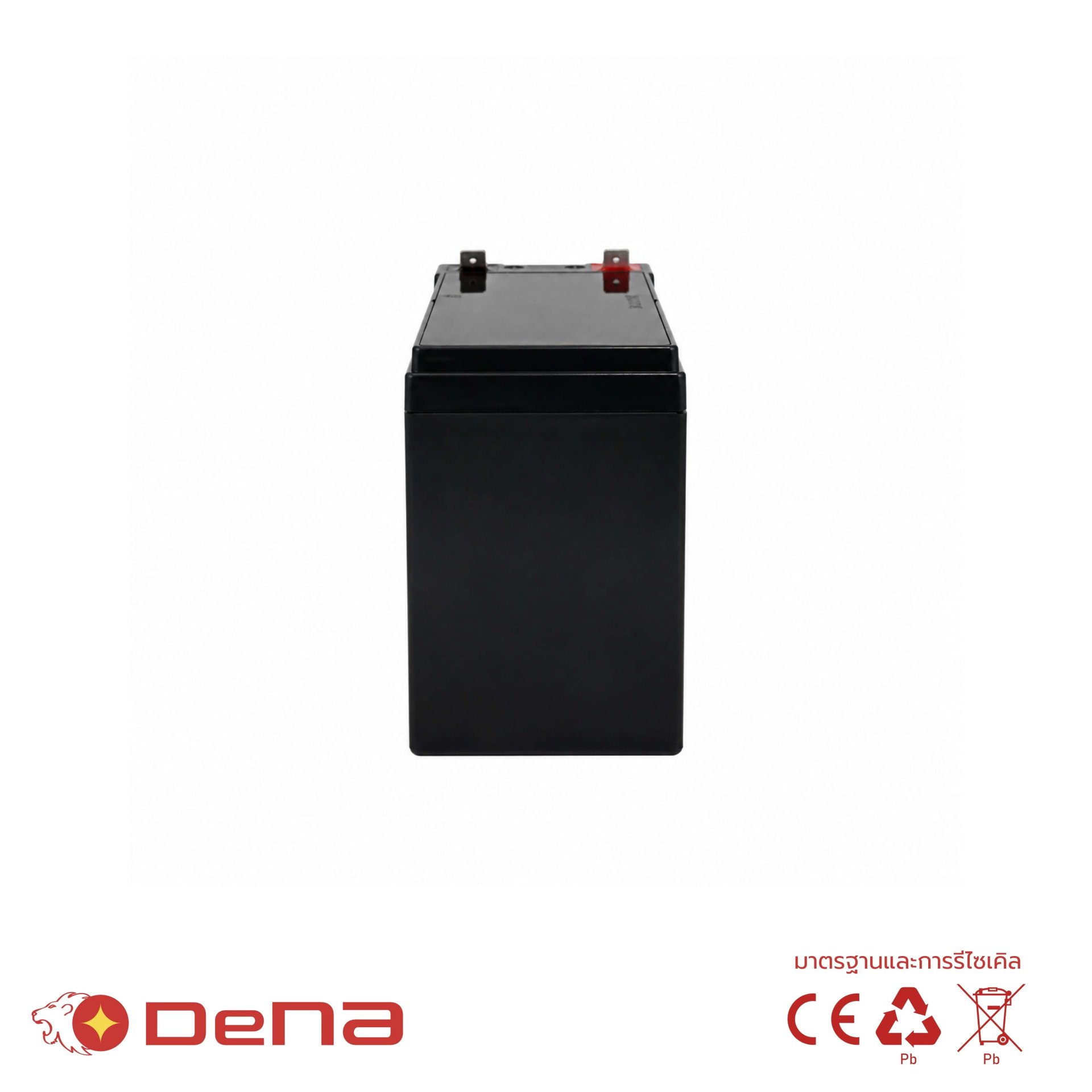

DeNA SH1275
Attribute:
Voltage (V) : 12 Capacity (Ah): 7.5 Dimensions : 151 x 65 x 94 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Floating Life @25°C | 5 years |
| Nominal Capacity @25°C 20 hour rate (0.25A, 10.8V) 10 hour rate (0.48A, 10.8V) 5 hour rate (0.89A, 10.5V) 1 hour rate (3.30A, 9.6V) | 7.5 Ah 7.1 Ah 6.7 Ah 4.95 Ah |
| Internal Resistance | ≤ 21mΩ |
| Self-Discharge @25°C per month | 3% |
| Operating Temperature Range Discharge Charge Storage | -15°C~45°C -15°C~45°C -15°C~45°C |
| Max. Discharge Current @25°C | 45A (5s) |
| Charge (Constant Voltage) @25°C Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8 V 2.25 A -30mV/°C 13.5 - 13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 151 / 5.95 65 / 2.56 94 / 3.71 100 / 3.94 2.2 / 4.84 |
